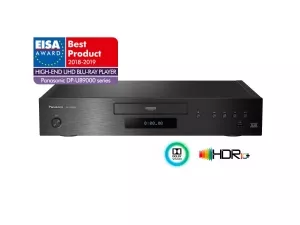

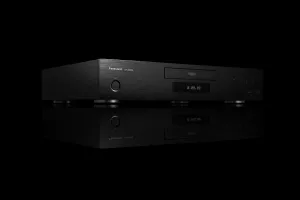

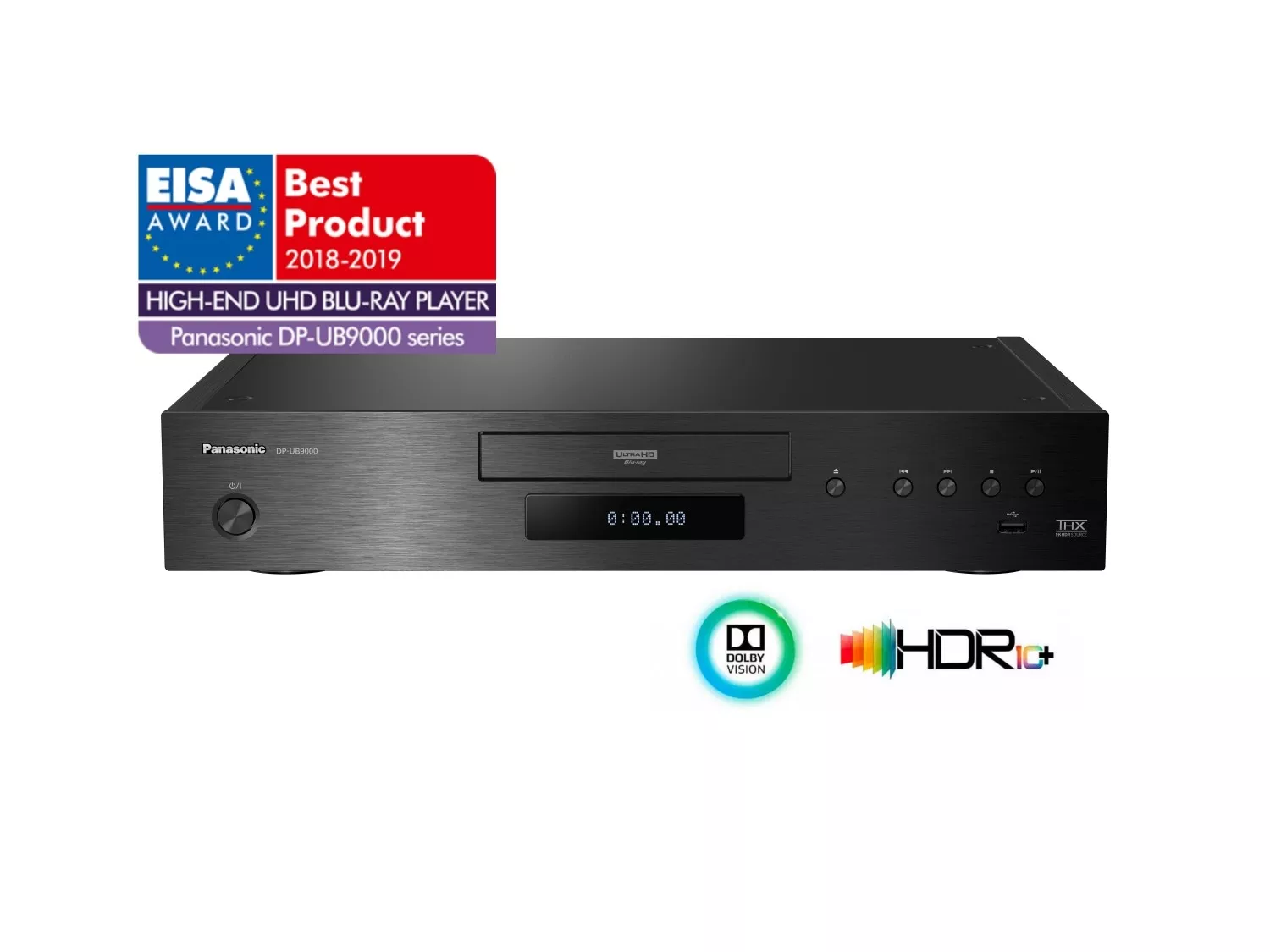

Panasonic UB9000 4K UHD reference Blu-ray dp-ub9000

BD-ROM - Ultra HD Blu-ray/ FULL HD 3D/ BD-Video yes

BD-RE/ BD-RE DL (Ver.3) - BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO yes

BD-R (Ver.1.3) / BD-R DL (Ver.2) - BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO yes

DVD - DVD-Video yes

DVD-R*1/ DVD-R DL*1/ DVD-RW*1

AVCHD/ MKV yes/ yes* (*DVD-R/ DVD-R DL)

DVD-Video/ DVD Video Recording yes

FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF yes (DVD-R/ DVD-R DL)

JPEG/ MPO yes (DVD-R/ DVD-R DL)

+R*1/ +R DL*1/ +RW*1 - Video/ AVCHD yes

CD, CD-R/ -RW

CD-DA/ DTS-CD yes

MKV yes (CD-R/ -RW)

FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF yes (CD-R/ -RW)

JPEG/ MPO yes (CD-R/ -RW)

AUDIO SYSTEM

Dolby Digital/ TrueHD yes (Decode and Bitstream Output*2)

Dolby Digital Plus yes (Decode and Bitstream Output*2)

DTS-HD Master Audio/ DTS-HD High Resolution Audio yes (Decode and Bitstream Output*2)

FLAC yes (Max. 192 kHz/ 24 bit)

Dolby Atmos/ DTS-X yes (Bitstream Output*2)

WAV yes (Max. 384 kHz/ 32 bit)

ALAC yes (Max. 96 kHz/ 32 bit (7.1ch), 176.4/192 kHz/ 32 bit (5.1ch))

DSD (DFF, DSF) yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))

AIFF yes (Max. 384 kHz/ 32 bit (2ch))

USB

Front 1 (USB 2.0 High Speed)

Rear 1 (USB 3.0 Super Speed)

Playback MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC) yes

JPEG/ MPO yes

FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3 yes (Gapless Playback FLAC/ WAV/ AIFF/ DSD(DFF))

MPEG-2/ AVCHD/ AVCHD 3D yes

HIGH QUALITY PICTURE

HCX Processor for Ultra HD Blu-ray yes

HDR HDR10+ yes

Dolby Vision yes

Hybrid Log Gamma(HLG) yes

HDR Optimiser yes

4K Up-scaling 60p/50p/ 444 (HDMI2.0) yes*4*5

24p/ 25p yes*4*5

4K Direct Chroma Up-scaling yes*4

4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4) yes

4K VOD yes*7

Picture Type Presets (Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8

Block/ Randam/ Mosquito Noise Reduction yes

Video on Demand in HD Quality yes

Ultra HD Premium yes

THX Certified yes

Deep Colour yes

x.v.Colour yes*9

HIGH QUALITY SOUND

TWIN HDMI yes

Pure Audio on HDMI (HDMI Low Clock Jitter Process) yes

High Quality Network Audio Playback (DLNA) yes*10 (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3)

High Clarity Sound Premium yes

Digital Tube Sound yes (Up to 192 kHz/ 32 bit)

Surround Re-Master yes*11 (Up to 192 kHz/ 32 bit)

Audio D/A Converter yes

Insulator yes

SMART FEATURE

Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa) yes

Unit Display yes (Dot Matrix)

Remote Control yes

Subtitle Position/Brightness Adjustment yes

HDAVI Control 5 (VIERA Link) yes

Internet Apps yes*13

Mirroring with Smartphone/Tablet yes*12

Web Browser yes

Wireless LAN System yes (Built-in) IEEE802.11 a/b/g/n/ac

External HDD Playback yes*14

Network Drive Access yes

BD-Live? yes*15

Network Contents Playback (Client & Renderer) yes*10

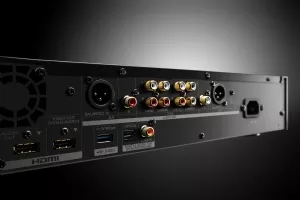

TERMINAL

HDMI Output yes (2)

Optical Output yes

Coaxial Output yes

Analogue Audio LR Output yes (XLR Balanced/ Gold Plated)

Analogue Audio 7.1ch Output yes (Gold Plated)

LAN (Ethernet) Terminal yes (for Ultra HD Blu-ray, DLNA*10, BD-LiveTM*15, Internet Apps*13 and Firmware Update)

Video System PAL/ NTSC

Dimensions (W x H x D) 430 x 81 x 300 mm*17

Weight 7.8 kg

NOTE*1 Discs recorded and finalized on recording devices.

NOTE*2 HDMI connections and compatible equipment (e.g. AV Receiver) required.

NOTE*3 Enabled by software update

NOTE*4 For 4K Up-scaling playback a TV with same resolution is required.

NOTE*5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.

NOTE*6 MP4(4K/25p,30p) bit rate up to 100 Mbps/resolution up to 3840x2160.

NOTE*7 Some network content services may not be available in your country.

NOTE*8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.

NOTE*9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.

NOTE*10 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.

NOTE*11 CD sampling is done at 176.4/88.2 kHz.

NOTE*12 A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required.

NOTE*13 Requires broadband Internet service.

NOTE*14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.

NOTE*15 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.

NOTE*16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.

NOTE*17 Excluding the projecting parts.

NOTE Specifications are subject to change without notice. All numbers given here are approximate.
